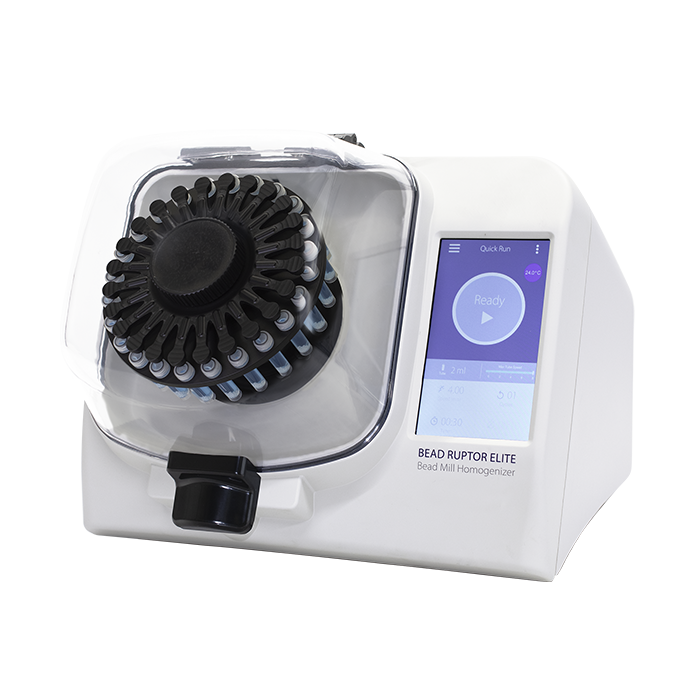

Omni Bead Ruptor Elite bead mill homogenizer Japan 100V

The Omni Bead Ruptor Elite is an advanced and easy-to-use bead mill homogenizer. It is specifically designed for grinding, lysing, and homogenizing biological samples prior to molecular extraction. It is designed with a unique carriage motion to ensure that the intra-tube bead movement reduces swirling and results in high-impact bead milling. The increased power of the Bead Ruptor Elite decreases processing time and reduces sample heating to maximize sample preparation efficiency.

All Bead Ruptor Tube Carriages Sold Separately.

For research use only. Not for use in diagnostic procedures.

Product Variants
Voltage: 115-230V
Part #:
19-042E
Voltage: 110V Japan
Part #:
19-042J

Overview

Lyse tough samples in seconds with The Bead Ruptor Elite.

  • Wide range of accessories for any sample size - 24 x 0.5 mL, 24 x 1.5 mL, 24 or 48 x 2 mL, 12 x 7 mL, 12 x 15 mL, 6 x 30 mL, 3 x 50 mL.
  • Most powerful bead mill on the market – homogenize the most challenging samples
  • New touch screen interface. Sample Preparation at your fingertips.
  • Optimate™ sample prep software
  • No cool down required between runs: process hundreds of samples per day
  • Convenient front loading design, 99 programmable memory settings, and multilingual user interface
  • Features an integrated lid lock to prevent lid opening during operation
  • A robust homogenizer for preparing samples when extracting DNA, RNA, proteins, and small molecules
  • Optimized tube motion ensures high performance

The Bead Ruptor Elite is designed with a unique carriage motion to ensure that the intra-tube bead movement reduces swirling and results in high-impact bead milling. The increased power of the Bead Ruptor Elite decreases processing time and reduces sample heating to maximize sample preparation efficiency.

The Bead Ruptor Elite unique tube carriage motion coupled with sample-specific bead beating materials ensure that a thorough homogenate is achieved regardless of the sample type. The high lysing efficiency of the Bead Ruptor Elite results in a increase in nucleic acid, protein and small molecules yields in the downstream assay.

Wide range of bead kits for any sample type

We offer users a range of flexibility with a range of bead beating tubes and lysing matrices to support homogenization of any sample type.

Additional product information

When comparing several commercially available bead mill homogenizers based on maceration level, nucleic acid quality, quantity, amplification, and DNA shearing to determine which instruments were effective for their sample type, the authors’ wrote:

"The Bead Ruptor 24 Elite had the highest overall score when disrupting a single, uninfected adult Amblyomma americanum (Linnaeus) (Ixodida: Ixodidae) and performed well in follow-on tests…."1

The authors' continued to note,

“Upon receiving the highest score on the evaluation matrix, the Bead Ruptor 24 Elite was further tested to determine whether it could consistently disrupt a tick body enough to release detectable quantity of pathogen…. In the present study, the tested traditional bead homogenizer, the Bead Ruptor 24 [Elite], seemed to perform the best overall.”1

Omni Bead Ruptor Elite homogenizer features

References:

  • Amanda M Jones, Marshall T Van de Wyngaerde, Erika T Machtinger, Edwin G Rajotte, Thomas C Baker, Choice of Laboratory Tissue Homogenizers Matters When Recovering Nucleic Acid From Medically Important Ticks, Journal of Medical Entomology, Volume 57, Issue 4, July 2020, Pages 1221–1227, https://doi.org/10.1093/jme/tjaa006

Specifications

Depth
43.2 cm
Height
33.0 cm
Voltage
110V Japan
Weight
29.0 kg
Width
38.1 cm
Accreditations
CE
Cycles/Programs
1 to 10 Cycles 99 Programs
Interface
Touchscreen
Sample Volume
25 µL to 50 mL
Special Ordering Information
Bead Ruptor Drive Unit (19-042J), Universal Finger Plate (19-370) and User Manual.
Speed
0.8 – 8 m/s in increments of 0.15 m/s
Timer
1 second to 9:59 minutes
Warranty
1 Year
