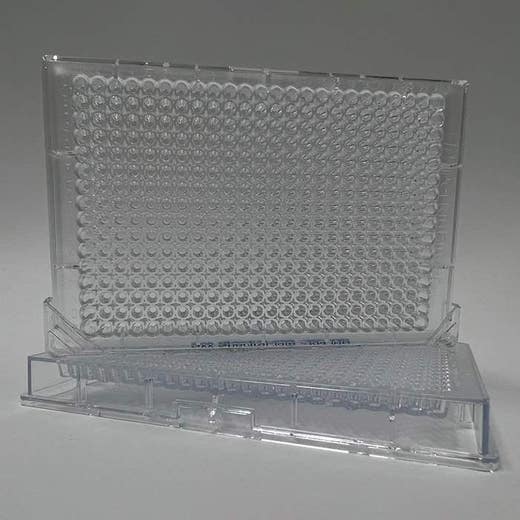

SpectraPlate 384-shallow well, medium bind, case of 200
SpectraPlate 384-shallow well, medium bind, case of 200
Shallow-well 384-well transparent polystyrene microplate for colorimetric and absorbance assays. The shallow well is designed for lower volume with higher sensitivity.
For research use only. Not for use in diagnostic procedures.
| Feature | Specification |
|---|---|
| Surface Treatment | Untreated |
| Color | Clear |
| Detection Modality | Absorbance/Colorimetric |
| Lids Included? | No |
| Material | Polystyrene |
| Sterility | Non-Sterile |
| Plate Format | 384 wells |
| Well Shape | Shallow-well |
| Well Volume | 28 µL |
| Working Volume | 10 - 20 µL |
Shallow-well 384-well transparent polystyrene microplate for colorimetric and absorbance assays. The shallow well is designed for lower volume with higher sensitivity.
For research use only. Not for use in diagnostic procedures.
SpectraPlate 384-shallow well, medium bind, case of 200
SpectraPlate 384-shallow well, medium bind, case of 200
Product information
Overview
Our SpectraPlates™ are transparent polystyrene plates that can be used for either top-reading or bottom-reading microplate readers. These plates have a medium binding (MB) affinity and are specified for assays that do not require anchoring of cells or other reagents to the surface of the plate.
Packaging Notes:
- Boxes of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Boxes of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Additional product information
Well plate dimensions
Well format: 384-well
| Description | Specification |
|---|---|
| Number of rows | 16 |
| Number of columns | 24 |
| Well volume | 28 µL |
| Recommended working volume | 10 µL - 20 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.47 |
| Well diameter (mm) | 3.65 |
| Well depth (mm) | 10.4 |
| A1 to top offset (mm) | 9 |
| A1 to side offset (mm) | 12.1 |
| Well-to-well spacing (mm) | 4.5 |
Specifications
| Color |
Clear
|
|---|---|
| Plate Format |
384 wells
|
| Well Shape |
Shallow-well
|
| Well Volume |
28 µL
|
| Working Volume |
10 - 20 µL
|
| Application |
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
SpectraPlate
|
| Detection Modality |
Absorbance/Colorimetric
|
| Format |
Microplates
|
| Lids Included? |
No
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Non-Sterile
|
| Surface Treatment |
Untreated
|
| Unit Size |
Case of 200
|
