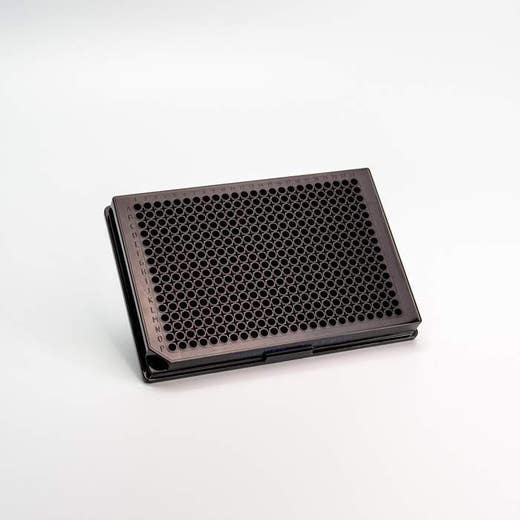

ProxiPlate 384-shallow well Plus, black, case of 50

Shallow-well 384-well black microplate for lower volume and increased sensitivity.

For research use only. Not for use in diagnostic procedures.

Feature Specification
Surface Treatment Untreated
Color Black
Detection Modality Fluorescence
Luminescence
Time-Resolved Fluorescence (TRF & TR-FRET)
Lids Included? No
Material Polystyrene
Sterility Non-Sterile
Plate Format 384 wells
Well Shape Shallow-well
Well Volume 28 µL
Working Volume 10 - 20 µL

Shallow-well 384-well black microplate for lower volume and increased sensitivity.

For research use only. Not for use in diagnostic procedures.

Overview

black ProxiPlate™-384 F contains shallow wells with a total volume of 20 µL, which allows 384-well sample volumes in 384-well format. shallow wells position samples much closer to analyzer?s detectors, which results in increased counting effciencies. increased sensitivity can also be used to reduce reagent costs in TRF assays. black Proxi-Plate™-384 F is manufactured from high-quality, black plastic resin, which reduces autofluorescence and results in low background signals. pinch bar design of ProxiPlate™-384 F facilitates automated processing by robotized systems. Revvity microplates are produced under clean room conditions to reduce dust or or contaminants. Bar coded microplates are available.

Features & Benefits:
  • Unique, shallow wells increased sensitivity
  • Low reagent volumes efficient time-resolved fluorescent assays
  • Low autofluorescence
  • Footprint conforms to proposed industry standard (SBS)
  • Pinch bar design optimal robotic processing
Typical Applications:
  • Low volume fluorescence applications
  • HTRF/TRF assays
Packaging Notes:
  • Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
  • TC-treated cases of 50 are packaged as 50 individually bagged and sealed lidded plates.
  • TC-treated cases of 160 are packaged as 8 sleeves of 20 lidded plates each. Each sleeve as 5 wraps of 4 lidded plates.
  • Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
  • TC-treated cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Lids are not included but can be ordered separately as Cat. No. 6005619 96-well plates or Cat. No. 6007619 384-well plates.

Additional product information

Well plate dimensions

Well format: 384-well

Description Specification
Number of rows 16
Number of columns 24
Well volume 28 µL
Recommended working volume 10 µL- 20 µL
Height (mm) 14.35
Length (mm) 127.76
Width (mm) 85.48
Well diameter (mm) 3.3
Well depth (mm) 5.3
A1 to top offset (mm) 8.99
A1 to side offset (mm) 12.13
Well-to-well spacing (mm) 4.5





Specifications

Color
Black
Plate Format
384 wells
Well Shape
Shallow-well
Well Volume
28 µL
Working Volume
10 - 20 µL
Application
Research
Automation Compatible
Yes
Brand
ProxiPlate
Detection Modality
Fluorescence
Luminescence
Time-Resolved Fluorescence (TRF & TR-FRET)
Format
Microplates
Lids Included?
No
Material
Polystyrene
Shipping Conditions
Shipped Ambient
Sterility
Non-Sterile
Surface Treatment
Untreated
Unit Size
Case of 50
