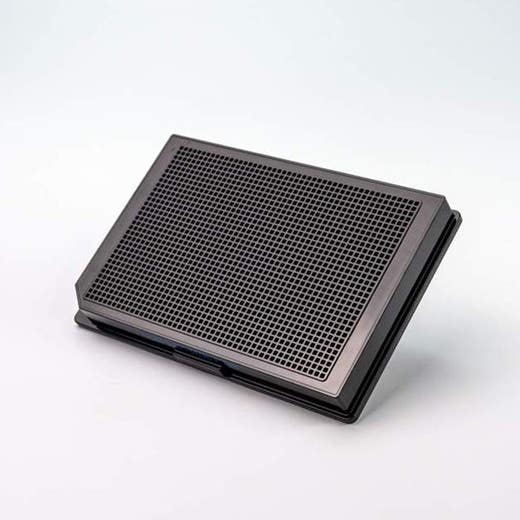

OptiPlate 1536-well, black, high protein binding affinity, case of 50
OptiPlate 1536-well, black, high protein binding affinity, case of 50
1536-well black microplate with high-binding treatment, for capturing proteins and antibodies to the plate for solid phase ELISA and other assays.
For research use only. Not for use in diagnostic procedures.
| Feature | Specification |
|---|---|
| Surface Treatment | High-binding surface |
| Color | Black |
| Detection Modality |
Fluorescence Luminescence |
| Lids Included? | No |
| Material | Polystyrene |
| Sterility | Non-Sterile |
| Plate Format | 1536 wells |
| Well Shape | Flat-bottom |
| Well Volume | 12 µL |
| Working Volume | 4 - 12 µL |
1536-well black microplate with high-binding treatment, for capturing proteins and antibodies to the plate for solid phase ELISA and other assays.
For research use only. Not for use in diagnostic procedures.
OptiPlate 1536-well, black, high protein binding affinity, case of 50
OptiPlate 1536-well, black, high protein binding affinity, case of 50
Product information
Overview
OptiPlate is one of most versatile Microplates offered by Revvity, used in many different applications, assays, and instruments. optimized well design and high quality plastics provides low background and crosstalk.
OptiPlates are uniquely engineered to be same height 96-, 384-, and 1536-well plates, and with extraordinary well flatness ease in automation.
Leveraging years of assay and instrument experience in plate detection, Revvity designs better Microplates better performance that guarantees better results all Revvity applications.
Packaging Notes:
- Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
- Cases of 100 are packaged as 4 sleeves of 25 plates each.
- Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
Additional product information
Well plate dimensions
Well format: 1536-well
| Description | Specification |
|---|---|
| Number of rows | 32 |
| Number of columns | 48 |
| Well volume | 12 µL |
| Recommended working volume | 4 µL – 12 µL |
| Height (mm) | 14.35 |
| Length (mm) | 127.76 |
| Width (mm) | 85.48 |
| Well diameter (mm) | 1.7 |
| Well depth (mm) | 4.8 |
| A1 to top offset (mm) | 7.84 |
| A1 to side offset (mm) | 10.96 |
| Well-to-well spacing (mm) | 2.25 |
Specifications
| Color |
Black
|
|---|---|
| Plate Format |
1536 wells
|
| Well Shape |
Flat-bottom
|
| Well Volume |
12 µL
|
| Working Volume |
4 - 12 µL
|
| Application |
Research
|
|---|---|
| Automation Compatible |
Yes
|
| Brand |
OptiPlate
|
| Detection Modality |
Fluorescence
Luminescence
|
| Format |
Microplates
|
| Lids Included? |
No
|
| Material |
Polystyrene
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Non-Sterile
|
| Surface Treatment |
High-binding surface
|
| Unit Size |
Case of 50
|
