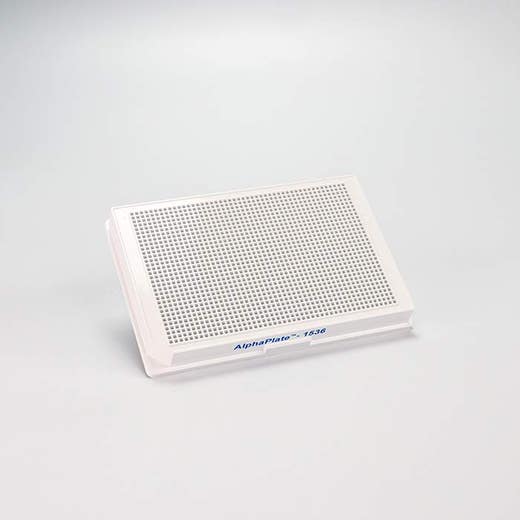

AlphaPlate 1536-well, light gray, untreated, case of 50

The 1536-well AlphaPlate is a unique light gray engineered microplate for reduction in crosstalk and assay optimization, designed specifically for AlphaLISA and AlphaScreen assay applications.

For research use only. Not for use in diagnostic procedures.

Feature Specification
Surface Treatment Untreated
Color Gray
Detection Modality Alpha
Luminescence
Lids Included? No
Material Polystyrene
Sterility Non-Sterile
Plate Format 1536 wells
Well Shape Flat-bottom
Well Volume 12 µL
Working Volume 4 - 12 µL

The 1536-well AlphaPlate is a unique light gray engineered microplate for reduction in crosstalk and assay optimization, designed specifically for AlphaLISA and AlphaScreen assay applications.

For research use only. Not for use in diagnostic procedures.

Overview

Revvity is proud to have designed a light gray microplate which addresses unique challenges of sample screening. Our uniquely engineered 384 well and 1536 well light gray AlphaPlate microplates combine best features of white microplates (excellent signal-to-background) and black microplates (decreased well-to-well crosstalk) superior assay window and sensitivity in comparison to any or plate luminescence assays. Our AlphaPlates are designed a variety of technologies luminescence based assays, but are specifically designed use with Revvity’s AlphaLISA and AlphaScreen technologies.

It’s important to choose correct microplate prior to your screening project. By choosing incorrect microplate, challenges such as missed data points, sample re-screening, missed project timelines and ultimately higher costs can be incurred.

Packaging Notes:
  • Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.
  • Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates.

Additional product information

Well plate dimensions

Well format: 1536-well

Description Specification
Number of rows 32
Number of columns 48
Well volume 12 µL
Recommended working volume 4 µL- 12 µL
Height (mm) 14.35
Length (mm) 127.76
Width (mm) 85.48
Well diameter (mm) 1.7
Well depth (mm) 4.8
A1 to top offset (mm) 7.84
A1 to side offset (mm) 10.96
Well-to-well spacing (mm) 2.25





Specifications

Color
Gray
Plate Format
1536 wells
Well Shape
Flat-bottom
Well Volume
12 µL
Working Volume
4 - 12 µL
Application
Research
Automation Compatible
Yes
Brand
AlphaPlate
Detection Modality
Alpha
Luminescence
Format
Microplates
Lids Included?
No
Material
Polystyrene
Shipping Conditions
Shipped Ambient
Sterility
Non-Sterile
Surface Treatment
Untreated
Unit Size
Case of 50
